DateBk5 for the Palm OS Platform

DateBk5 Features:

DateBk5 is a superset of the built-in datebook application, meaning that all the functionality available in that application is also available in DateBk5. In most cases, it is also implemented in an identical manner to facilitate the transition to this program. Most users often start using DateBk5 without ever bothering to read the manual. However, it is a good idea to read the manual as there are many shortcuts and small features that you are not likely to be aware of unless you read about them.

Below, just some of the more important and useful features of DateBk5 are discussed. For the full functionality, you can download the 100+ page manual in PDF format (it is downloaded in a zip archive). Link for the manual is in the right side bar of the Datebk5 page.

System Requirements:
  • Palm OS V-2.0 or later.
  • At least 600k of free memory. DateBk5 is a large program. If you choose to install the Help database, icons, icon editor, etc. you would need 700k free.
  • Must reside in RAM or Flash ROM for alarms to work (unless OS supports alarms for applications on external cards).
  • To support DateBk categories on the desktop, you need to be using a category-aware conduit, see DateBk5 manual for details.

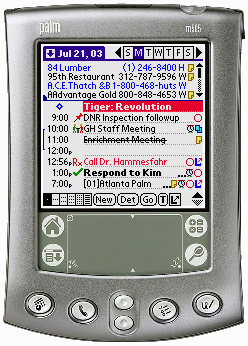

DayView. The Day view display here shows many of DateBk5's features.

The entry In UK office... is displayed in a large bold font with white text on a red background. For each entry, you can specify both a foreground and a background color selected from user-defined palettes of 16 and 8 colors respectively. The items also show the use of color icons. DateBk5 can also support DateBk4-style monochrome icons, and for those users who are not interested, the icon display can be suppressed and the space they use reclaimed for more description text.

The Delta 317 to flight shows DateBk5's ability to display items to the nearest minute (4:17p), not just 5-minute interval. An optional 'p' clearly identifies pm times. The Call for haircut item has a checkoff circle indicating this is a floating event. Floating events are a bit like undated ToDo's except that they can be scheduled for future dates and then automatically float forward until you check them off.

At the top of the screen is a split-screen display of the addressbook. This window can be closed by just tapping on the split-screen menu icon at top left and selecting Close Window. This facilitates linking - the airplane item displaying the L with an arrow is linked to the Delta entry in the addressbook and can be brought up by simply tapping on the icon.

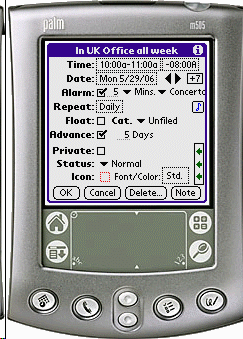

Details Dialog. The details dialog shows all the additional attributes that DateBk5 supports over the built-in datebook. Starting on the second line with Date: you will notice left/right arrows that advance the date forwards or backwards, and a +7 button that advances it by a week. You can of course also tap on the date to bring up the enhanced date picker (see below). Alarms show how you can assign a custom alarm sound to an event (concerto in this case). The repeat event also displays the first occurrence of the repeat.

Next is the very useful Advance feature. Five days before the first occurrence of this repeat event, DateBk5 will create a floating reminder that will float forwards day by day as a reminder of the upcoming event. The Icon button allows you to assign a specific icon to this event, while the Lrg. button below shows that the item will be in a large bold font with the designated colors.

DateBk5 supports categories in the datebook database making it possible to separate business from personal items or carry calendars of other individuals. Categories can be displayed all at once, singly, or (and this is unique to DateBk5) in any combination.

The Time zone display (only enabled if installed) indicates that this particular event occurs at 10:00am in the Pacific Time zone.

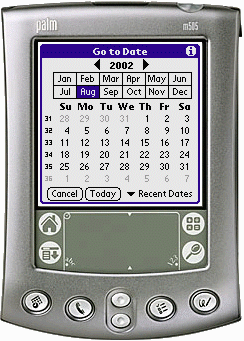

Date Picker Dialog. DateBk5 has an enhanced Date Picker dialog which operates the same way as the standard Palm Date Picker, but with many extra features.

In the display to the right, the small numbers identify the week of the year (31-36 in this example). Days outside of the current month are shown in gray (or in a lighter font on devices that do not support color or grayscale).

A popup list of recent dates at the bottom right remembers the last 10 dates that you had selected in the date picker for easy access.

A TapAndHold on any day of the month displays a popup list of all the events and ToDo's on that day, making the date picker far more useful for rescheduling events.

Finally, as is often the case in DateBk5, some small usability features are welcome: tap on the Jan button when Jan is already displayed, and you move to Dec in the prior year (same thing happens when you tap on Dec - you move to Jan in the next year). Tap on the year, and you can quickly graffiti in the two digit year, without having to spin the year one year at a time.


Graphical Weekly View. The graphical weekly view becomes considerably more useful with the addition of icons that clearly identify what the activity is.

In addition to supporting a popup window when you tap on an item, you can tap on the blank area right below the date to popup a list of all events (and optionally, ToDo's) for that day.

Other display options in that view allow you to adjust the timescale that is displayed, so you can have as little as 2 hours, or as much as 24 hours all displayed at once on the screen.

A useful Details button in that view allows you to bring up the details of any item you tap on and make changes without having to return to the day view.

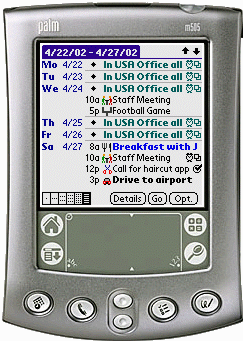

Weekly View With Text. In addition to the graphical weekly view, DateBk5 features a very useful weekly view that displays the text of appointments. For many people, this week-at-glance view is one of the most useful views in DateBk5. If only one item is present on a day, the text can be optionally wordwrapped to additional lines. Times can be displayed in a condensed format to show more text.

A tap on a day cell brings up a detailed view of all items on the day where ToDo's can be checked off, and the details dialog brought up to make any changes to the attributes of an item.

There are actually three sub-views which can show one week, two weeks, or a half/week (3-days). On higher resolution devices such as the Clie and Handera, significantly more text and lines can be displayed if the option for displaying in a condensed font is selected.

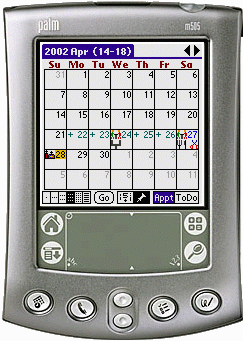

Monthly View. As with the weekly view above, DateBk5 actually features three sub-views in the monthly view. In addition to a display similar to the built-in datebook application, DateBk5 can display icons which again conveys more information as to the identify of the events being displayed on that day. The icon display can also include icons for ToDo's (last button at bottom right).

The third sub-view is a Free-Time search feature whereby you can tell DateBk5 that you are looking for days that have say five hours free (either contiguous or in aggregate depending on options) on certain specific days of the week (say MWF). DateBk5 will then scan forwards until it finds a month with at least one day that meets that criteria. This can be especially useful for scheduling meetings (as the search could take into account multiple calendars, etc.).

The monthly view can also display week numbers (weeks 14-18 are being displayed here).

And a TapAndHold on any cell in the month will display a popup list of all the events and ToDo's for that day.

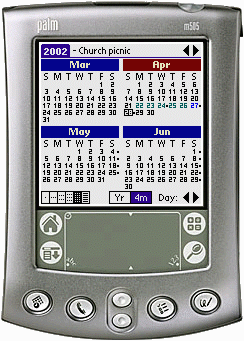

4-Month View. DateBk5 has a 4-month and a full year view. The 4-month view is shown to the right here. When you tap on a day, the first item on that day is displayed at the top of the screen (Church picnic in this case). A dot is displayed after any day that has one or more events. If there is an event in a bold font and color, that color then colors the day number, so you can use this to quickly highlight vacation schedules etc.

If you tap briefly on a day cell, the day is highlighted and a popup list appears showing all the events and ToDo's on that day. TapAndHold on that day (so you can verify you have the correct day selected) and DateBk5 will take you to the day view with that item selected.

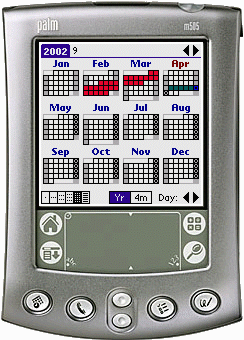

Yearly View. To display an entire year at a glance is definitely pushing the resolution capabilities of standard Palm OS devices. However, even at this resolution, useful information can be conveyed - especially on color devices. If there is an event scheduled for the day (and there is a lot of useful filtering that you can invoke, such as only including items with a specific icon, etc.), then a dot appears in the middle of the cell for that day.

Colors can be used to color cells, so if red is used to indicate days on which you are out of town, you can see at a glance that you were out of town for the last half of February and the first half of March.

The top line displays the day of the month that is currently selected (which will blink on and off so you can easily find it).

A shading option makes it easier to identify weekends (in this case, we used the option to shade Saturday and Sunday).


List View. DateBk5 has a list view which shows all the items in a continuous list that you can page through. Options allow you to choose exactly what items you want to display. In this case, every possible item is shown - day of week, time, and icon - but you can remove items you don't need to produce a cleaner display.

The list view has a very useful filtering feature that allows you to select what items are displayed (see Display Options dialog below).

Using these options you can produce dedicated lists of items, such as all items referencing a particular account, or a list of all your daily journals, or a list of all personal tasks for the coming month.

DateBk5 supports Block Commands which affect all items in the list. So once you have a list built and displayed, you can delete all the items, move them to a different category, select an icon, beam those events, or export them to a MemoPad record (automatically dividing it into multiple memos if they don't fit).

A Time/Billing feature allows you export items and display the durations of the events, and, at the end, list the total duration and even calculate a billing amount based on an hourly rate(!).

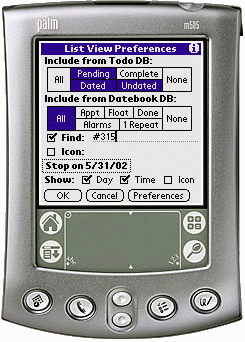

List View Options. The Display Options dialog for the list view allows you to selectively control what items are displayed in that view.

In the example to the right, we are displaying all events and all incomplete ToDo's that have the text string '#315' somewhere in the description or note field. Presumably this is an account number, so we can get a list of all items pertaining to particular account.

The Stop date allows the list to be built from the designated starting date up through May 31, 2002 at which point the list will stop. This is convenient when you intend to export the information to a memopad record.

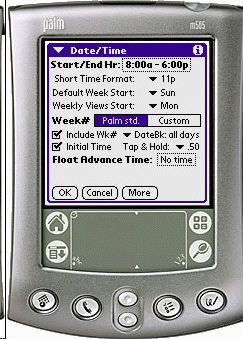

Global Preference Panel. DateBk5 has an extraordinarily rich set of preference settings. While this can be a bit overwhelming to the new user, the wealth of preference settings is also one of DateBk5's biggest assets. Rather than forcing you to adhere to the way that the program was designed, you can almost always get DateBk5 to work the way that YOU work.

To facilitate the handling of the preferences, all global preferences (meaning preference options that affect two or more views) are all centralized into one large preference panel with tabs.

In the example to the right, the Date/Time tab is being displayed, where everything related to dates and times are displayed. DateBk5 has very powerful customization features such as indicating the starting day of the week (which can be any day of the week), or custom week numbers (maybe you want to track weeks in a huge project).

DateBk5's enhanced Date Picker dialog is a useful feature, but what if you were using a hack to display a custom calendar (for example, there are custom religious calendars that can be displayed)? DateBk5 always has options, so in this case, you can tell DateBk5 to just use the regular Date Picker dialog so the hack will produce the desired effect.


Other Features. Well, if you have got this far, and are still reading all of this, it looks like it's time to take DateBk5 for a "test drive".

There are over 100 more features that haven't even been touched on here. Many of the features involve fixes for the tiny annoyances that you no doubt have experienced:

  • Events with no duration show a redundant time bar
  • Every time you mark an event private, you get an annoying dialog
  • You don't want to confirm every deletion (especially with undelete)
  • You want to get to today quickly without bring up the date picker
  • You want better control over snoozing alarms
  • You want an easy way of changing the description of just one instance of a repeat event
  • You want quick shortcuts to handle common tasks such as advancing an item to the next day

Sound familiar? Fixes for all the above items and many more featurettes are present in DateBk5 and contribute greatly to its on-going popularity among Palm users.
